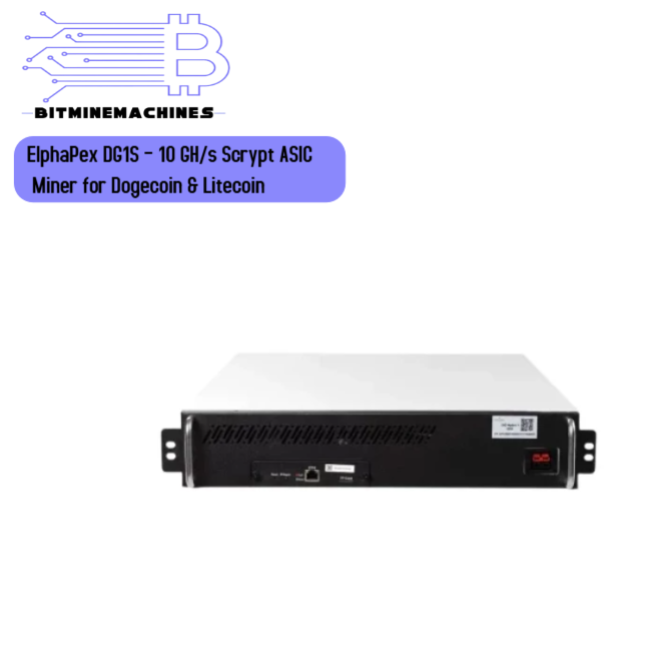

ElphaPex DG1S – 10 GH/s Scrypt ASIC Miner for Dogecoin & LitecoinElphapex

The ElphaPex DG1S – 10 GH/s is a high-performance ASIC miner specifically engineered for the Scrypt algorithm. Released in mid-2025, it is designed for industrial-grade mining of Dogecoin (DOGE) and Litecoin (LTC), offering a balance between a high hash rate and improved energy efficiency compared to earlier generations.

Below are the detailed technical specifications for the product.

Core Performance

• Hashrate: 10 GH/s (10,000 MH/s) ±5%

• Algorithm: Scrypt (optimized for LTC + DOGE merge mining)

• Power Consumption: ~3,100W ±5% (at 25°C ambient temperature)

• Power Efficiency: Approximately 0.31 J/MH

Physical Specifications

• Dimensions: 656 x 447 x 86 mm (Server-rack style form factor)

• Net Weight: 25,000g (25 kg)

• Cooling System: Air-cooled with 4 high-speed fans

• Noise Level: 75 dB (Typical industrial miner noise level, comparable to a loud vacuum or heavy traffic)

Connectivity & Environment

• Network Connection: RJ45 Ethernet 10/100M

• Operating Temperature: 5°C to 45°C

• Operating Humidity: 5% to 95% (non-condensing)

• Input Voltage: AC 380V–480V (Note: This is a high-voltage industrial requirement; standard residential outlets will not support this without specialized electrical work)

Key Features

• Merge Mining: Capable of mining Litecoin and Dogecoin simultaneously without sacrificing hashrate, effectively providing two streams of income for the same power cost.

• Industrial Build: Unlike the “DG Home” series, the DG1S is built for data center environments, featuring a chassis designed for rack mounting and high-airflow management.

• Stability: Features an advanced control board to maintain consistent hash frequency and minimize downtime during fluctuations in ambient temperature.

Note for Operators: Due to the 75 dB noise level and the high voltage requirement ($380\text{V}$+), this unit is recommended for dedicated mining facilities or well-ventilated industrial spaces rather than residential home use.
