Operating Temperature
1~40℃
Headwind speed
≤3.5m/s
Medium
Water
Supply water temperature
1~40℃
Evaporation efficiency
＞69%

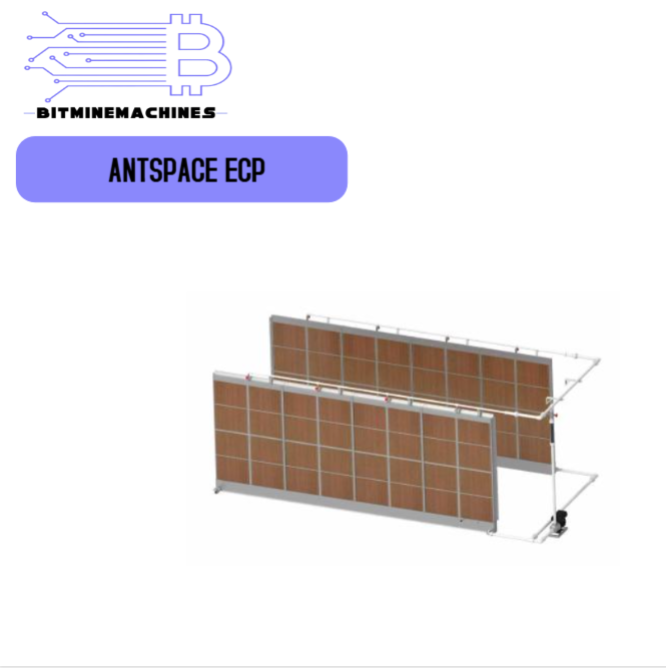

Evaporative Cooling Pad
–
Water tank
–
Water pump
Head: 8m, Flow rate: 10m³/h
The inlet pipe
Ø50mm
The water distributor
Main pipeline：Ø50mm、Branch pipe：Ø32mm
The tank’s water replenishment port
DN25 male thread connection
The tank’s overflow port
DN32 male threaded connection
The tank’s drain port
DN32 female threaded connection
Ball valve
DN32
Flowmeter
–
